Push
/ Pull Switch
#305-030
Heavy duty push/pull
switch (pull on-push off), can be used for lights or other
accessories. Features chrome knob, copper screw terminals
and a diecast base. Mounting stem is 5/8" long with a
15/32" diameter. High current rating of 75 amps @ 6-28
volts DC. Use with Remote
Battery Disconnect Circuit.
__________________________________________________________

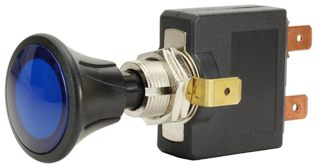

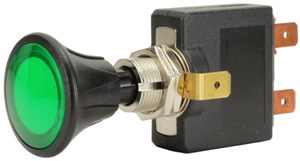

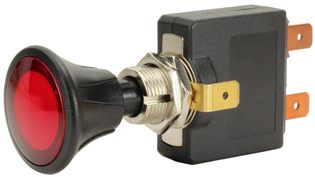

Push/Pull Switch with LED Indicator
|
|
|
#305-040 |
#305-041 |
#305-042 |
Push/pull switches with bright
center knob LED indicators. Available with green, blue or
red indicator. Nylon housing with 1/4" copper contacts
and separate ground contact. 9/16" diameter shaft with
two flats to prevent turning. Rated 50 amp @14VDC.
___________________________________________________

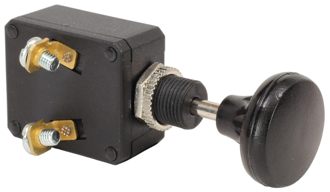

Black Knob Push/Pull
Switch
Single
Pole Push/Pull |

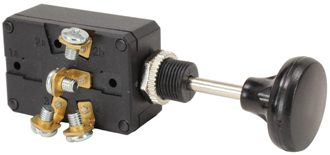

3-Way
Push/Pull |
Automotive style push/pull switch
which can be used for many applications. The 3-way switch
can be used to control parking light/headlight combination.
Mounts in a 7/16" hole and features screw terminals for
a solid connection. Rated 30 amps at 14VDC. |
