Feed
Thru Junction Blocks
RED
3/8"
Studs #406-202 (350 Amp)
5/16" Studs #406-223 (250
Amp)
1/4" Studs #406-224 (150 Amp)
|
BLACK
3/8"
Studs #406-201 (350 Amp)
5/16" Studs #406-221 (250
Amp)
1/4" Studs #406-222 (150 Amp) |
Pass through double
stud design. Glass filled nylon construction with mounting
holes. Nickel plated brass stud for high current applications
with stainless steel hardware. Max. voltage 48VDC. Use with
Fastronix insulator covers for corrosion and short protection.

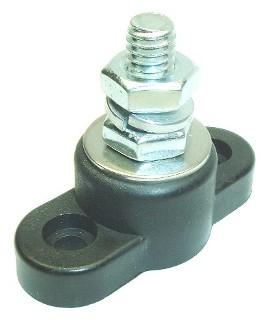

Power
Junction Blocks
Single stainless steel
stud power junction block. Nylon construction with mounting
holes. Can be used for power or ground distribution. Available
in red or black. Max voltage 48VDC.
3/8"
Stud |
5/16"
Stud |
1/4"
Stud |
|
|
|
#406-200 |
#406-204 |
#406-206 |
|
|
|
#406-202 |
#406-205 |
#406-209 |
Thru-Panel
Battery Feed
Black #405-001
|
Red #405-101
|
Installs easily in a 1-1/4" hole to provide a positively
isolated battery feed through terminal connection. Two 3/8"-16
brass stud terminals, 5/8" long.
__________________________________________________

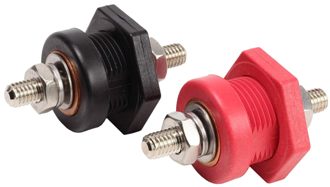

Premium Heavy Duty Thru-Panel
Pair
#406-239
High current feed thru pair (red
and black), for severe duty applications. Features an internal
copper core bushing for high power transfer with a strong
3/8" nickel plated steel shaft and stainless hardware
for high torque tightening. Glass filled nylon body which
secures with a nylon back nut in a 1-17/64" hole. Continuous
duty rating of 440 amp @12VDC.
|
