Stud Terminal Covers
Insulating terminal boots
are available in black and red in a variety of configurations and
sizes for many different applications. Terminal covers add safety
and prevent electrical shorts and corrosion and give your projects
a professional look.

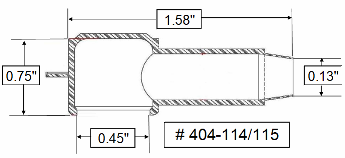

Mini Terminal Insulators
| Mini insulators
for use with #10 studs or smaller and will accommodate wire
sizes 8-10 gauge. Reference diagram for sizing. |
#404-114
|
(2) Red |
| #404-115 |
(2) Black |
| #404-122 |
(2) Red and (2) Black |
______________________________________________________________

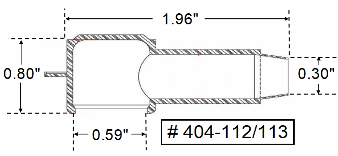

Small Terminal Insulators
| Small insulators
for use with 1/4"- 5/16"studs. Will accommodate wire
sizes 8 - 2 gauge. Reference diagram for sizing. |
#404-112 |
(2) Red |
| #404-113 |
(2) Black |
| #404-121 |
(1) Red and (1) Black |
________________________________________________________
Medium Terminal Insulators
| Med.
insulators for use with 5/16"- 3/8"studs. Will accommodate
wire sizes 8 - 2 gauge. Reference diagram for sizing. |
#404-132 |
(2) Red |
| #404-133 |
(2) Black |
| #404-125 |
(1) Red and (1) Black |
_________________________________________________________

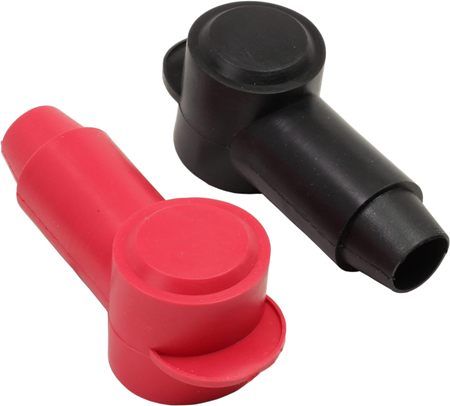

Large Terminal Insulators
| Large insulators
for use with 1/2" studs. Will accommodate wire sizes 2
- 2/0 gauge. Reference diagram for sizing. |
#404-116 |
(2) Red |
| #404-117 |
(2) Black |
| #404-123 |
(1) Red and (1) Black |
___________________________________________________________

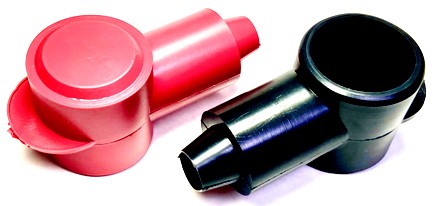

Extra Large Terminal Insulators
| Extra Large
insulators for use with 9/16"-1/2" studs. Will accommodate
wire sizes 2 - 2/0 gauge. Reference diagram for sizing. |
#404-118 |
(2) Red |
| #404-119 |
(2) Black |
| #404-126 |
(1) Red and (1) Black |
_______________________________________________________

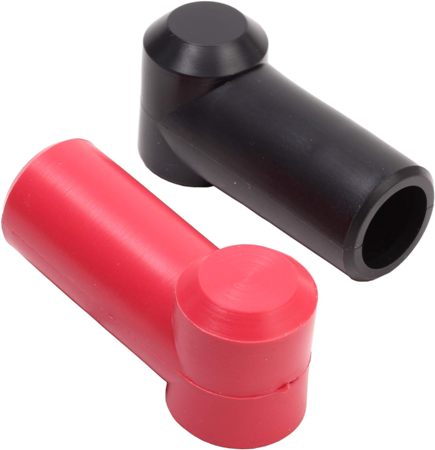

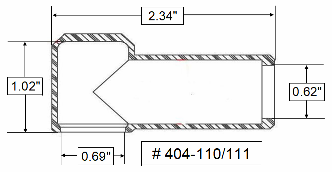

Lug End Style Covers
| Use with
3/8" stud battery disconnect switches or other 3/8"
applications. Cable entry size 2 - 3/0 gauge. Reference diagram
for sizing. |
#404-110 |
(2) Red |
| #404-111 |
(2) Black |
| #404-120 |
(1) Red and (1) Black |
____________________________________________________________________

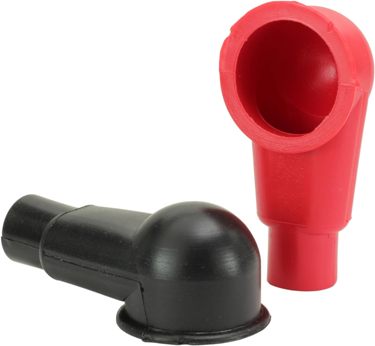

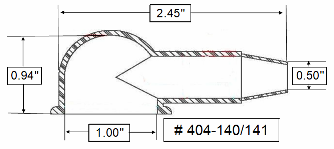

Specialty Terminal Covers
| Side post
battery, alternators, or other large diameter applications.
Cable entry size 2 - 2/0 gauge. Reference diagram for sizing. |
#404-140 |
(2) Red |
| #404-141 |
(2) Black |
| #404-124 |
(1) Red and (1) Black |
|
